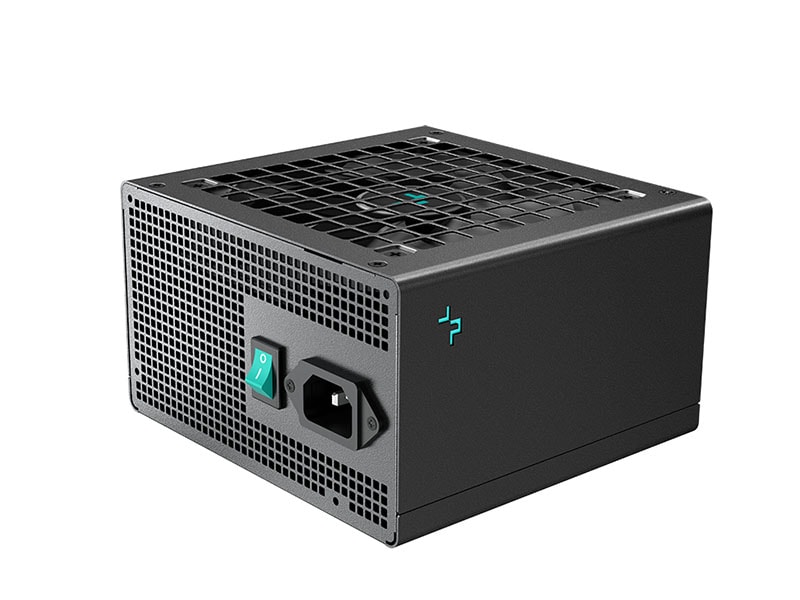

PSU 850W Deepcool PN850M 80Plus Gold, Full Modular, PCIe Gen 5.1 Ready, 12V-2×6 12VHPWR

Опис

Гаранција: 12 месеци

The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2×6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.

GRACEFUL GOLD
80 Plus Gold certified to meet a high level of power efficiency under 90% of typical loads. Each unit is also rated Gold by Cybenetics.

PCI-E 5.1 POWER
Equipped with a high-grade 105C-resistant 16AWG copper-core embossed 12V-2×6 cable, the PN850M provides up to 600W for modern GPUs.

SLEEVED CABLES
The PN850M has been outfitted with sleeved cables right out of the box! A welcomed upgrade to add to the premium asesthic and feel of the PSU.

Technical Spec
Type: ATX12V V3.1
Product Dimensions: 150×140×86mm (W x L x H)
Efficiency certification: 80Plus Gold
Fan Size: 120mm
Fan Bearing: FDB (Fluid Dynamic Bearing)
Topology: Active PFC + Full Bridge SRC LLC + DC to DC
Capacitors: Japanese Bulk Capacitor
Power Good Signal: 100-150ms
Hold Up Time: ≥16ms(80% Load)
Efficiency: ≥90% Under Typical Load(50% Loading)
Protection: OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO
Operation Temperature: 0 – 40℃
Regulatory: CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH
Erp Regulation: ErP 2014
Environment Protection: WEEE/中国 RoHS/Triman/P65
MTBF: 100,000 Hours
